Import Dashboard

What is it?

Dashboard import lets you load pre-built dashboard configurations from JSON files, instantly setting up complex monitoring layouts without manual widget creation. This is perfect for:

• Quick Setup: Deploy comprehensive monitoring in seconds
• Best Practices: Use proven dashboard templates
• Team Sharing: Share dashboard configurations across teams
• Backup & Restore: Restore previous dashboard configurations

Access import

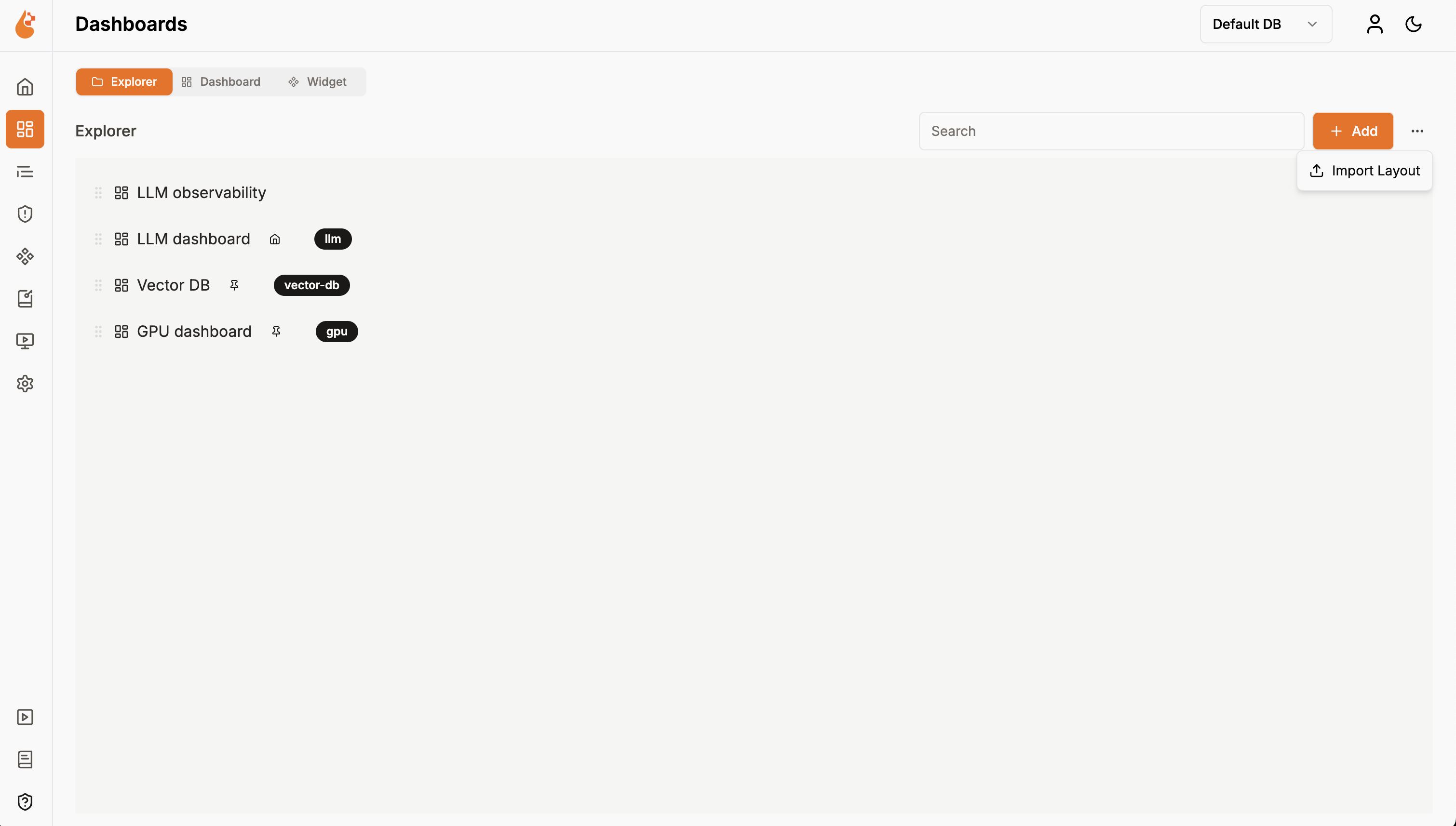

Navigate to your Dashboards Explorer and locate the Import Layout button in the top-right corner of the interface.

Click the Import Layout button to open the import dialog.

Upload your dashboard JSON

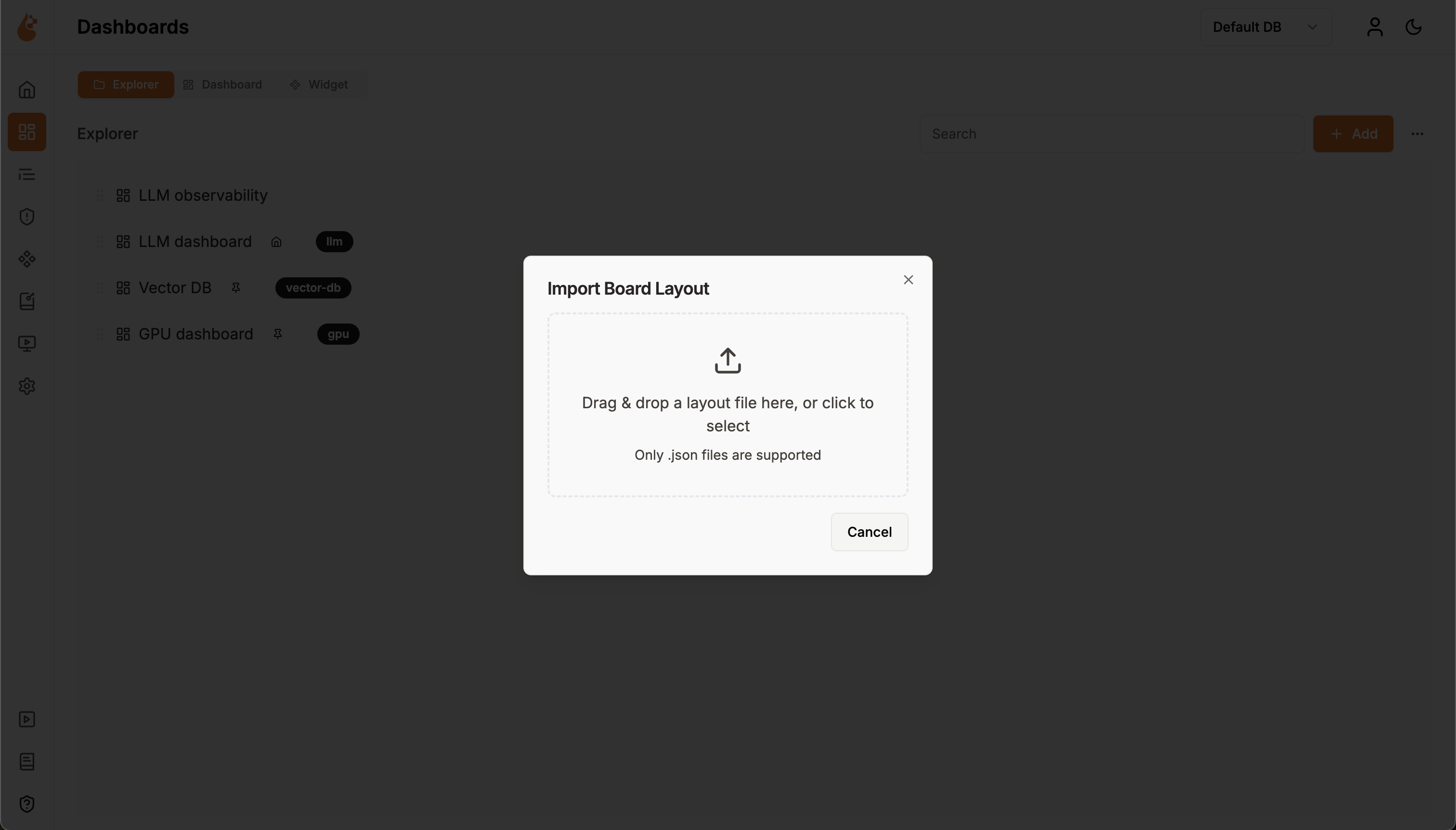

The “Import Board Layout” dialog will appear with a file upload interface.

You can upload your dashboard configuration in two ways:

Option 1 - Drag & Drop:

• Drag your .json dashboard file directly from your file explorer
• Drop it into the designated upload area in the dialog

Option 2 - Browse & Select:

• Click anywhere in the upload area to open your system’s file browser
• Navigate to your dashboard file and select it

Your imported dashboard is now ready

You can immediately start monitoring your data with all the pre-configured widgets and layouts.
